Dongfeng Cummins Engine Co., Ltd. (hereinafter referred to as “Dongfeng Cummins” or “DCEC“) is located in Xiangyang City, Hubei Province, is the modern manufacture of heavy duty engine 50:50 Joint Venture shared by Dongfeng Automobile Limited and Cummins USA. The company mainly produce B/C/L/ISB/ISDe/ISLe/ISZ series Cummins automotive engine, construction engine, diesel pump engine, marine engine, generators engine, 6BT5.9-M120 marine engine is one of the engine family members, the specifications of Cummins 6BT5.9-M120 marine engine as follows:
|

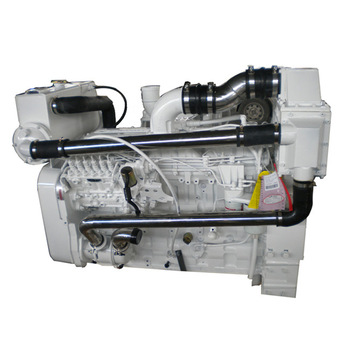

6BT5.9-M120 Cummins Marine Engine and Spare Parts
|
|
| Engine Model | 6BT5.9-M120 |
| Rated Power | 90kW |
| Rated Speed | 2200RPM |
| Engine Type | 6 Cylinders, in Line |
| Bore*Stroke(mm) | 102mm*120mm |
| Displacement | 5.9 L |
| Compression Ratio | 17.3:1 |
| Peak Torque | 430N.m @1600r/min |
| Fuel Consumption | 25.3 L/hr |
| Aspiration Type | Turbocharged |
| Cooling Method | Water Cooled |
| Start Type | 24V, Electric Start |
| Fuel System | Direct Injection Pump |
| Governor Method | Mechanical Governor |
| Packing Weight | 800KG |
| Dimension | 1500mm*1000mm*1450mm |
Remarks:
(1) If you need the 6BT5.9-M120 marine engine power pack with the marine gearbox, please further contact our sales.
(2) We can provide the 6BT5.9-M120 complete marine engine, as well as the 6BT5.9-M120 genuine Cummins engine parts.
(3) Cummmins 6BT5.9 Series Marine Engine Model: 6BT5.9-M120, 6BTA5.9-M150.
